NEXTAQUA DATAMATE IPIS PIS AC PIS NON-AC

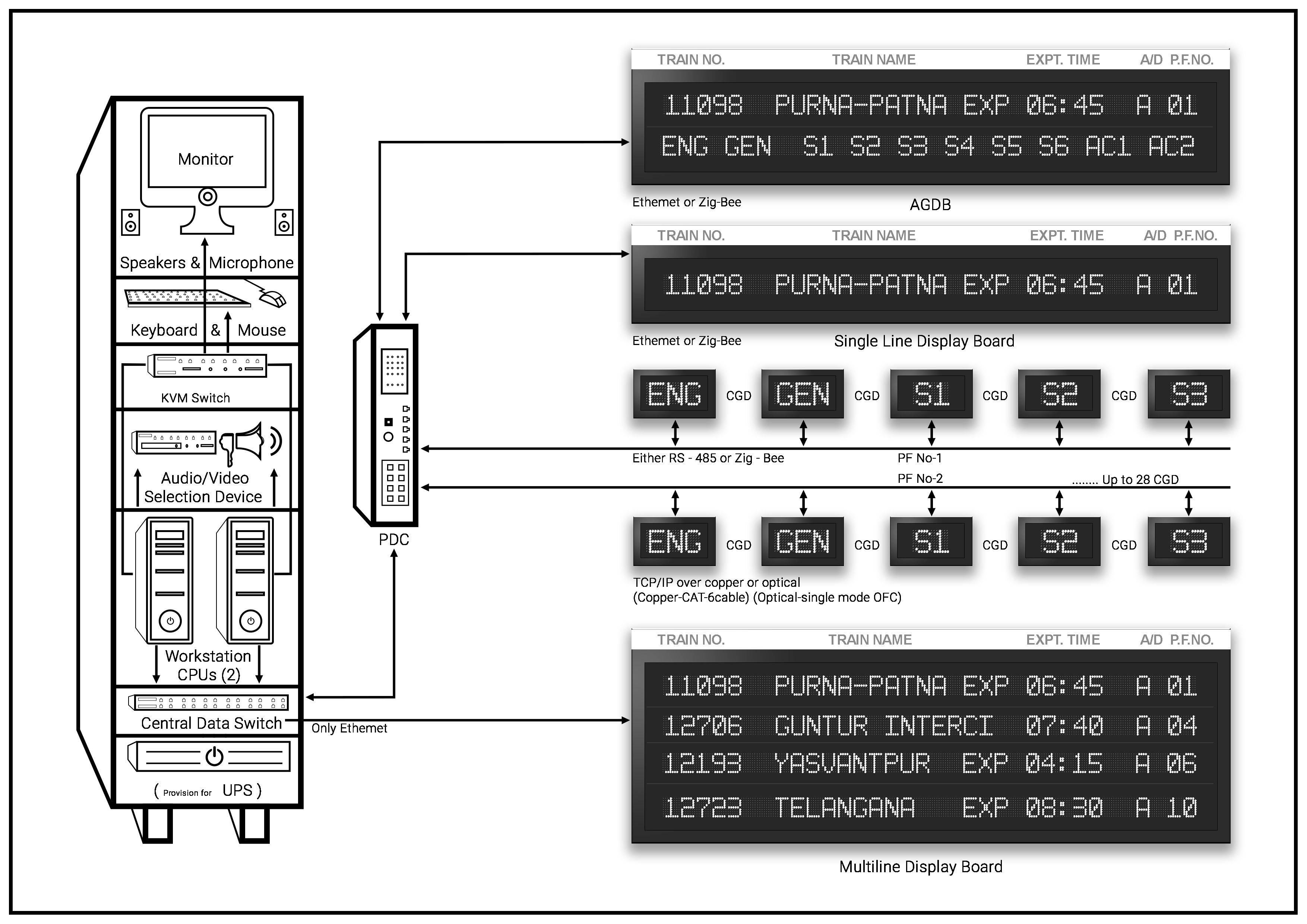

The Integrated Passenger Information System (IPIS) is a computer based single control and data entry system providing audio and visual information to passengers through multiple LED boards i.e. Single Line, Multiline, At a glance & coach guidance display spanning over the entire station with the feature of networking and operation from a centralized location according to specification number RDSO/SPN/TC/61/2015 Rev 04.

#

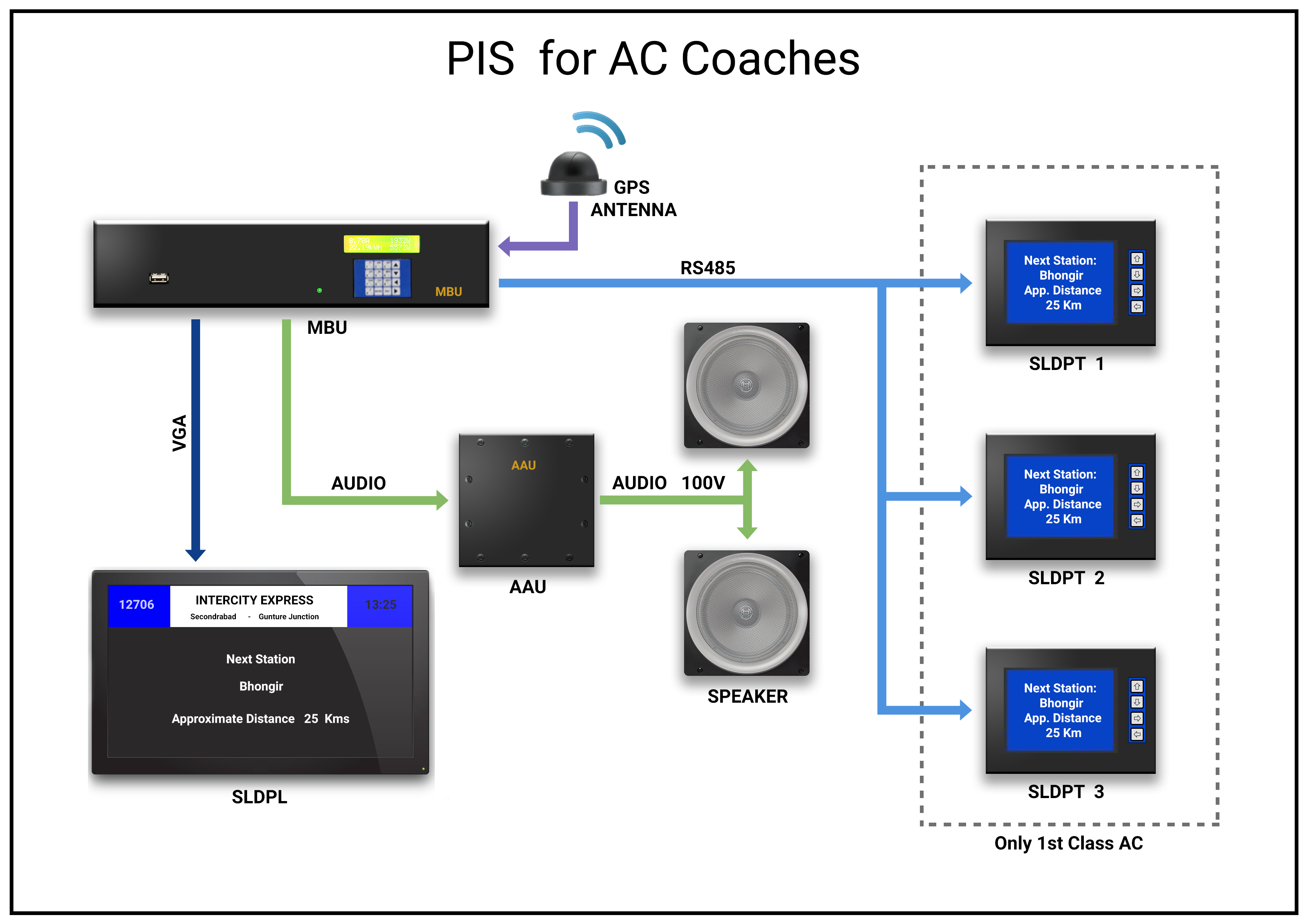

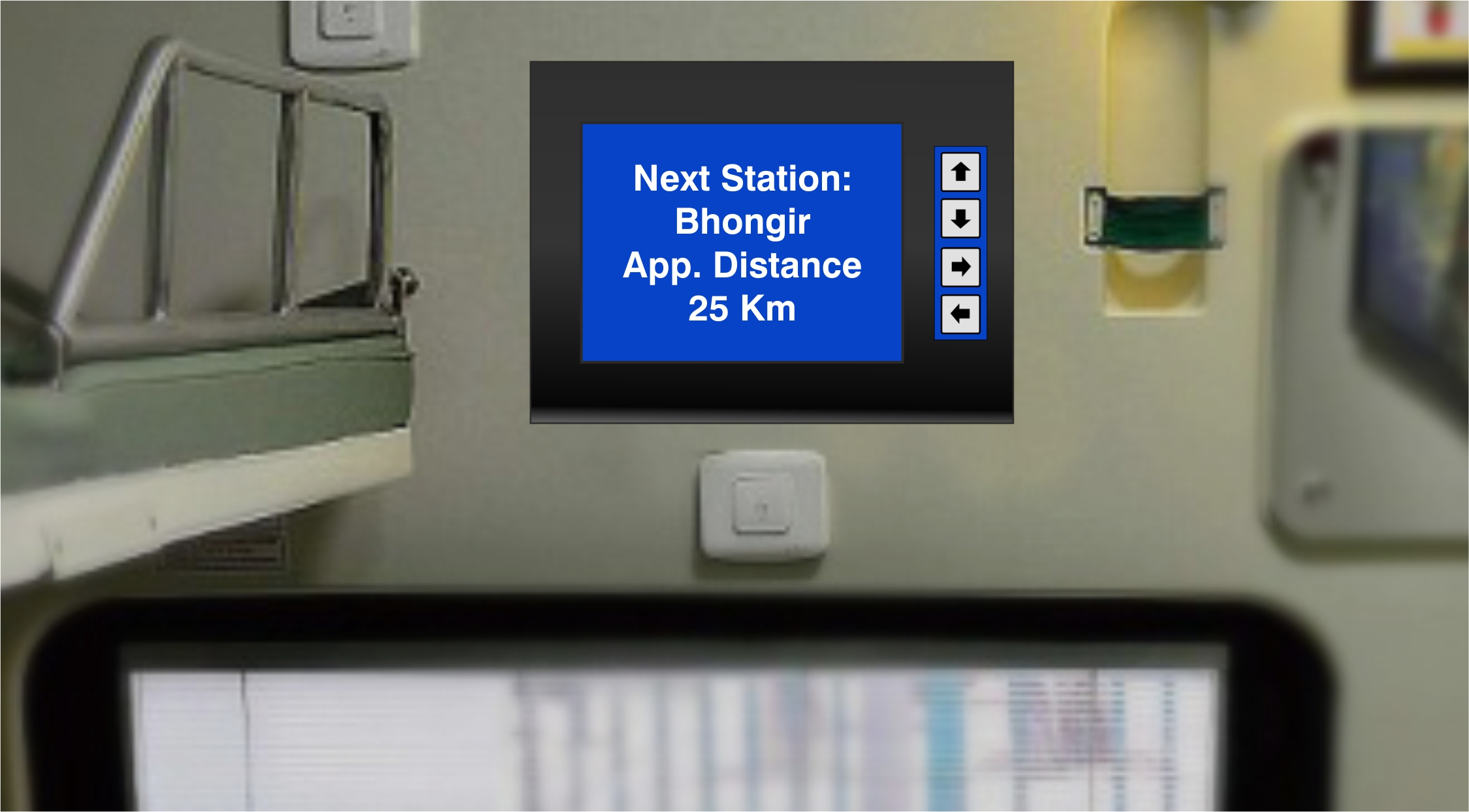

Passenger information system is an important aspect of passenger amenity. PIS for AC coaches comprise of Master Board Unit (MBU) Slave LCD Display Panel (SLDPL) single and double sided Slave LCD Display Point (SLDPT) for First class Coupes Audio Announcement Unit (AAU) with Amplifier Speakers. The GPS based Passenger Information System for AC and NON-AC Coaches is a cost effective solution designed to enhance passenger comfort by providing real time multilingual audio-visual information.

  • Train information Name, Number , From Station and To station
  • Present station and Next station Name
  • Approximate distance remaining from next halting station
  • Late running status with time
  • Welcome, Farewell and Safety messages
#

How it works?

The GPS receiver module receives the coordinates (longitude and latitude) information of the current location from GPS satellites. The location information is transmitted to the CPU of Master unit which in turn decodes this position information received and fetches the location name with kilometer information from the stored route data. It then compiles messages/icons/images pertinent to passenger interest and transmits them over an RS485 link for the display devices to repeat. On the receipt of information from CPU, AAU generate and Announces the requisite voice messages after concatenating various voice segments stored in the memory.

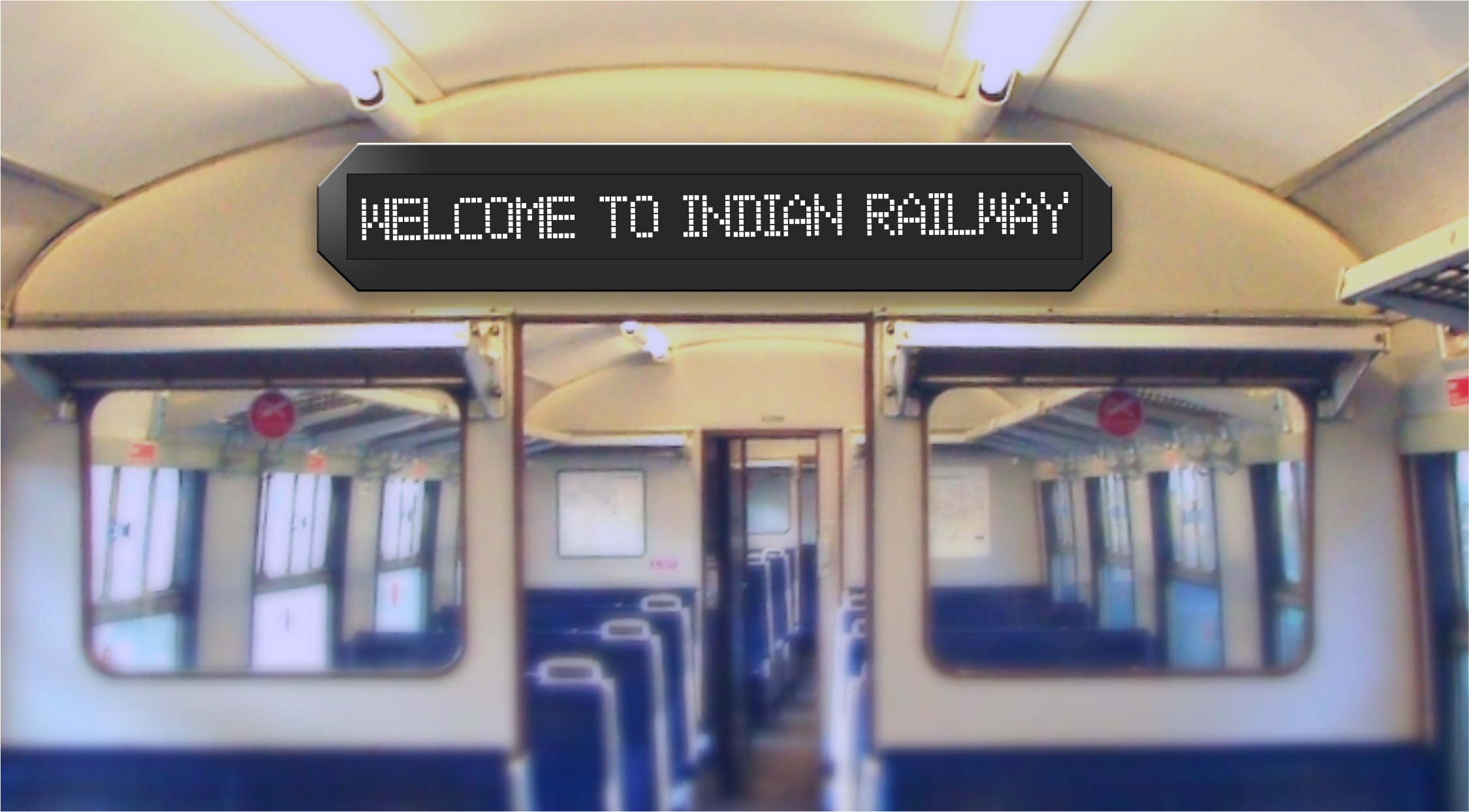

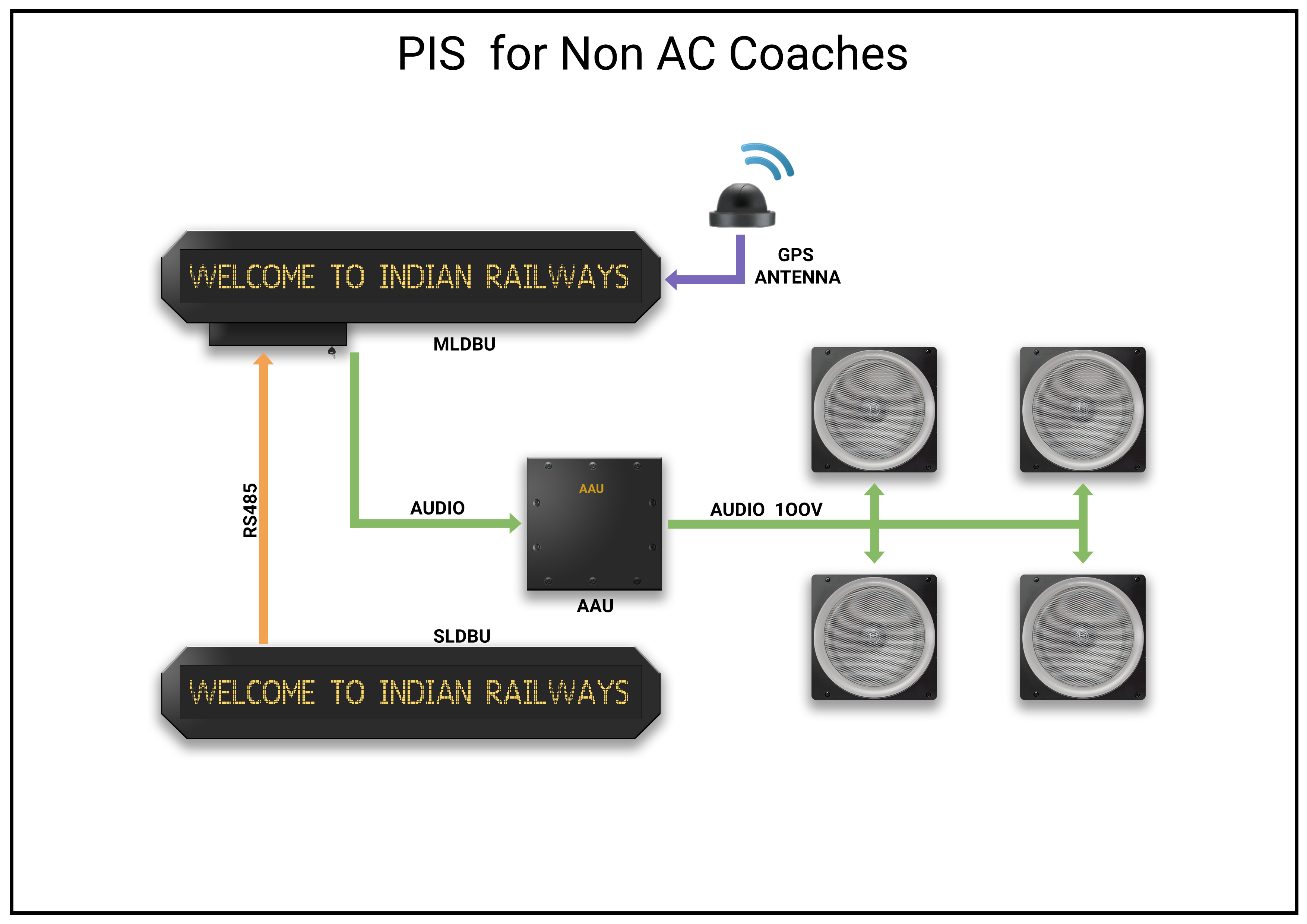

Passenger information system is an important aspect of passenger amenity. PIS for NON-AC coaches comprise of Master LED Display Board Unit (MLDBU) Slave LED Display Board Unit (SLDBU) Audio Announcement Unit (AAU) with Amplifier Speakers. The GPS based Passenger Information System for AC and NON-AC Coaches is a cost effective solution designed to enhance passenger comfort by providing real time multilingual audio-visual information.

  • Train information Name, Number , From Station and To station
  • Present station and Next station Name
  • Approximate distance remaining from next halting station
  • Late running status with time
  • Welcome, Farewell and Safety messages
#

How it works?

The GPS receiver module receives the coordinates (longitude and latitude) information of the current location from GPS satellites. The location information is transmitted to the CPU of Master unit which in turn decodes this position information received and fetches the location name with kilometer information from the stored route data. It then compiles messages/icons/images pertinent to passenger interest and transmits them over an RS485 link for the display devices to repeat. On the receipt of information from CPU, AAU generate and Announces the requisite voice messages after concatenating various voice segments stored in the memory.

Aerator Monitoring System (Patent Pending, No: 201841018233)

Aerator monitoring and fault prediction system for pond aerators used in aqua culture. The system comprises a plurality of clamp sensors for monitoring input power supply, On/Offstate, current consumption and fault state. The system inputs the information to the farmers, their technicians and supervisors. On a fault condition,the system would send notification to the farmer. The backend system monitors if the farmer has read the notification in a predefined time. If not, the system would send SMS and initiates a call to the whitelist numbers those are pre-configured.

#

Automation of Check Tray Monitoring (Patent Pending)

Automation of check tray monitoring in the field of aquaculture, for real time remote monitoring of shrimp/prawn/fish health, growth, molten, excreta and feed patterns. The system comprises of check tray with built in on-board camera, processor board with wi-fi and 4G,self cleaning multi parameter water quality sonde, a special measurement net,portable autofeeder,solar panel,and a battery. Using the on-board camera and Image processing software provided on the on-board Processor board, farmers and doctors get real-time feed patterns, health and growth information and alerts through a mobile app. The device also takes cognizance of water parameters using the multi parameter water quality sonde and controls the usage of aerators and provides alerts and suggestions to farmers​. Farmers can input a feed schedule to this system for the entire crop cycle using the mobile app, and make necessary changes at any time during the crop based on environmental conditions, moon cycles, feed consumption and growth patterns through mobile app.

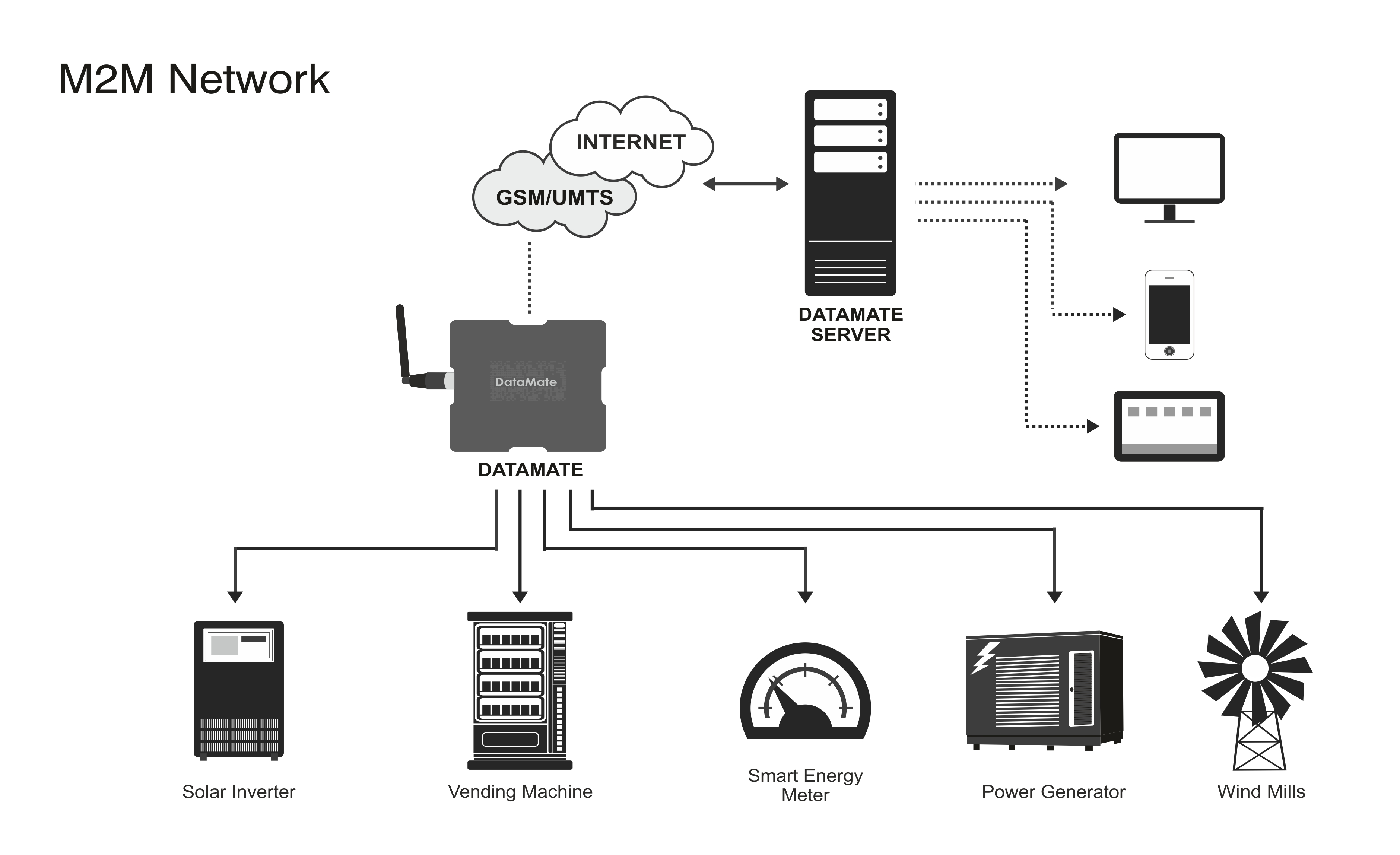

Datamate is the ultra low cost PLC on cloud. It is a new generation of IOT solution developed for the wireless centralized management of endpoint devices (such as energy meter, Inverter, UPS,VFD,IPS) and remote systems. Full remote control and administration of your devices is ensured by creating secure, protocol-independent data transmission on the GSM network. The potential of DataMate is almost unlimited, across any equipment/devices, in any business sector, located anywhere in the world. Datamate provides the data required for analysis and deployment of actions needed while keeping tighter control on total cost of ownership.

#
#

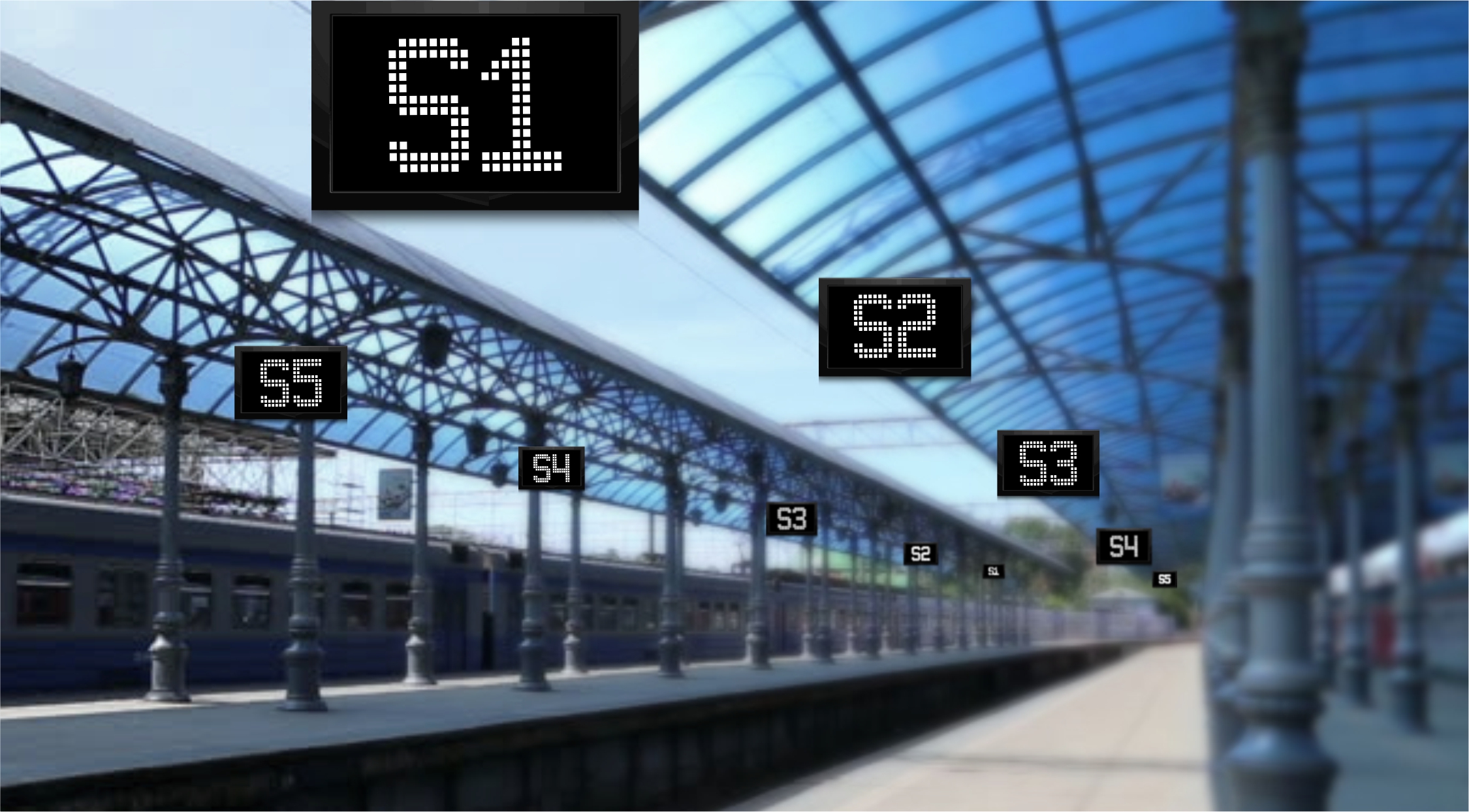

IPIS CGDB

These are double faced display boards used to provide along the length of a platform for the purpose of giving individual coach position information of a train which is about to arrive on that platform.These display boards are interfaced to the control console through appropriate hub It displays only 5 character/numeric at a time for display of following:

#

IPIS MLDB

These can be either single face or double face display boards and are provided at the main entrance points of railway stations and some times on important platforms. Display size can be minimum 2 lines to maximum 10 lines. It provides information of arriving and departing of all the trains as shown in diagram:

#

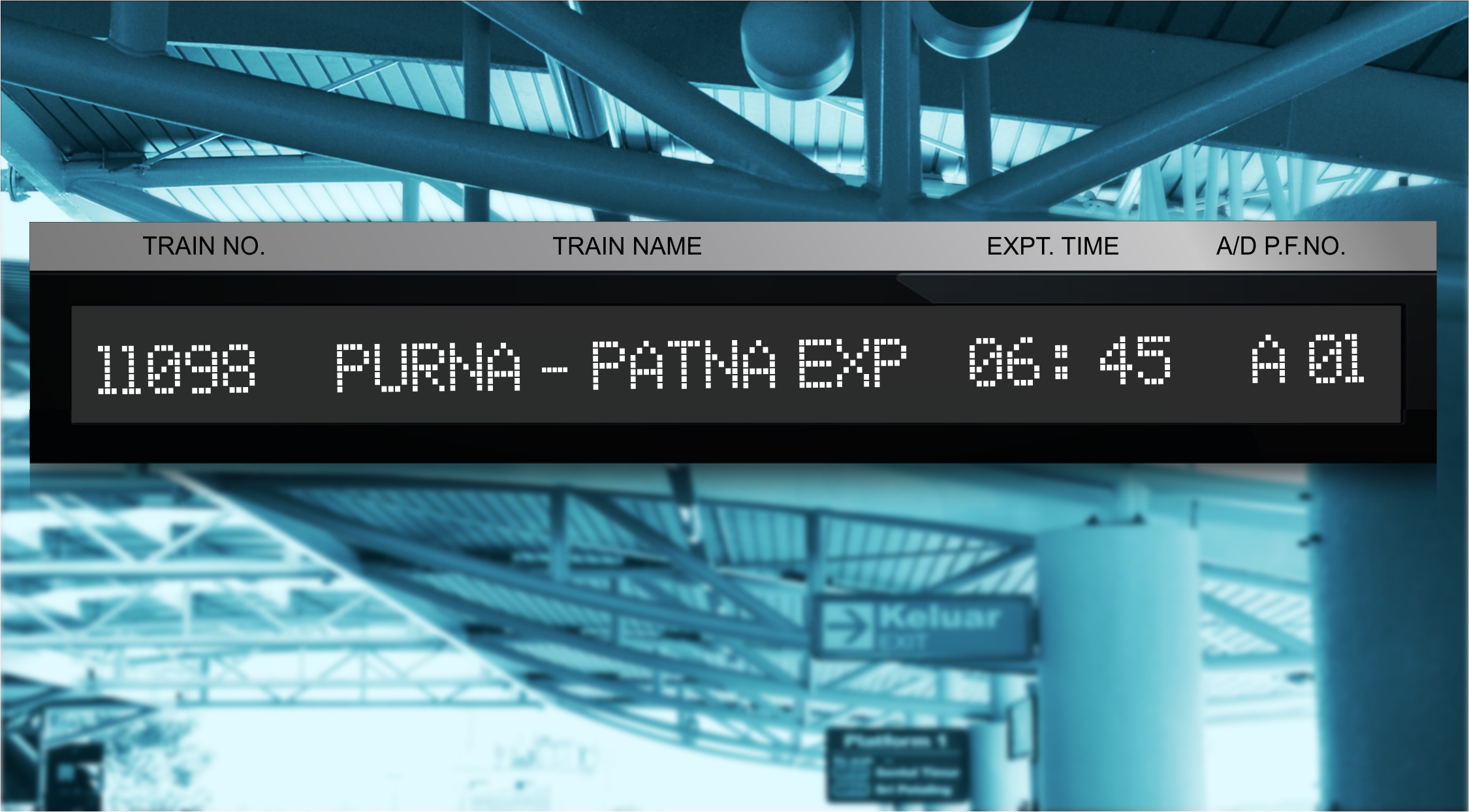

IPIS PDB

It is also called platform display board. Generally it is a double face display board provided on all platforms. It displays informations of a train which is about to arrive or depart from the platform on which it is provided.

#

IPIS AGDB

These are single face Display Boards used to provide complete information about a single train at a time. The information is displayed in three lines. First line displays train number, train name, train arrival/departure time and the platform number similar to MLDB/SLDB. The second and third lines display train formation of that particular train starting from engine as shown in diagram

#

IPIS CCTV

The CCTV monitors display the train information similar to that displayed by a LED display board. Each control console unit is having video output. The input to the CCTV will be selected by manual redundancy switch. The CCTV monitors are either LCD or LED monitor.
